MZN201 – Skyline GT-R R32 Group A Specifications

The kyosho instruction for this white body can be downloaded here.

Specifications

This is the Group A race version of the R32 initially released under the reference MZN23. The body is the same. They are additional parts that make it a race car.

This body was designed for an AWD chassis, as this R32 car has an AWD drivetrain. But you can still mount it on an RWD chassis.

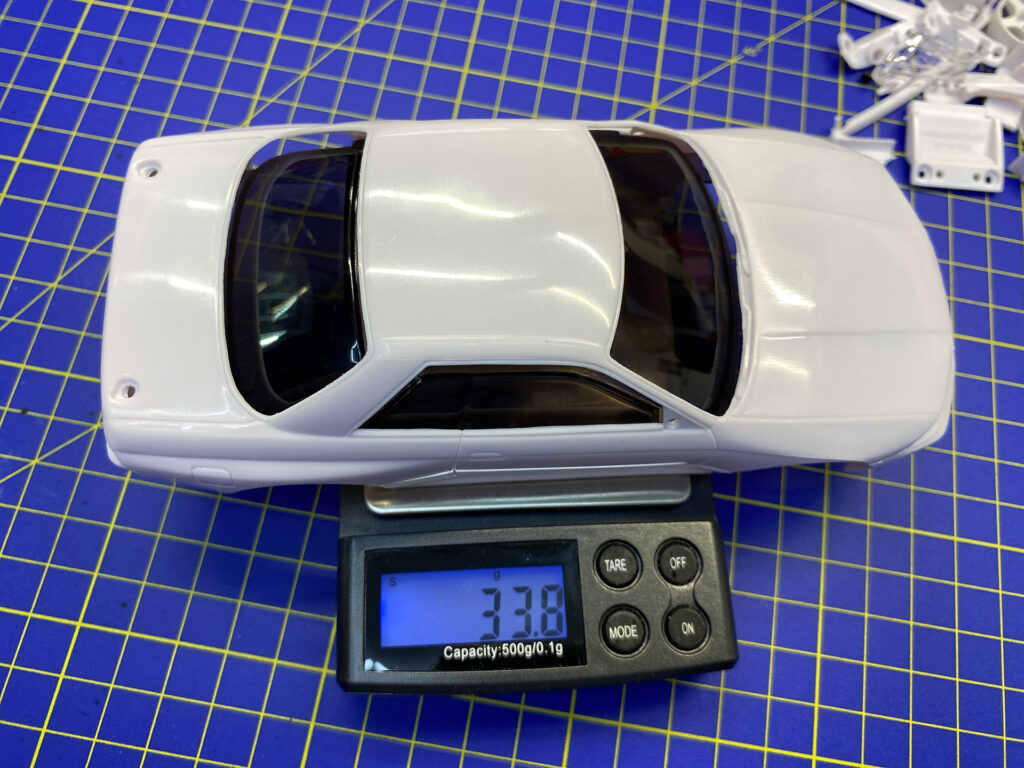

Wheelbase	Front Chassis Type	Front Wheels Offset	Rear Wheels Offset	Length	Width	Height	Weight
94 mm	Narrow	+1.5 mm	+1.5 mm	165 mm	71 mm	43 mm	38 gr.

Bag content

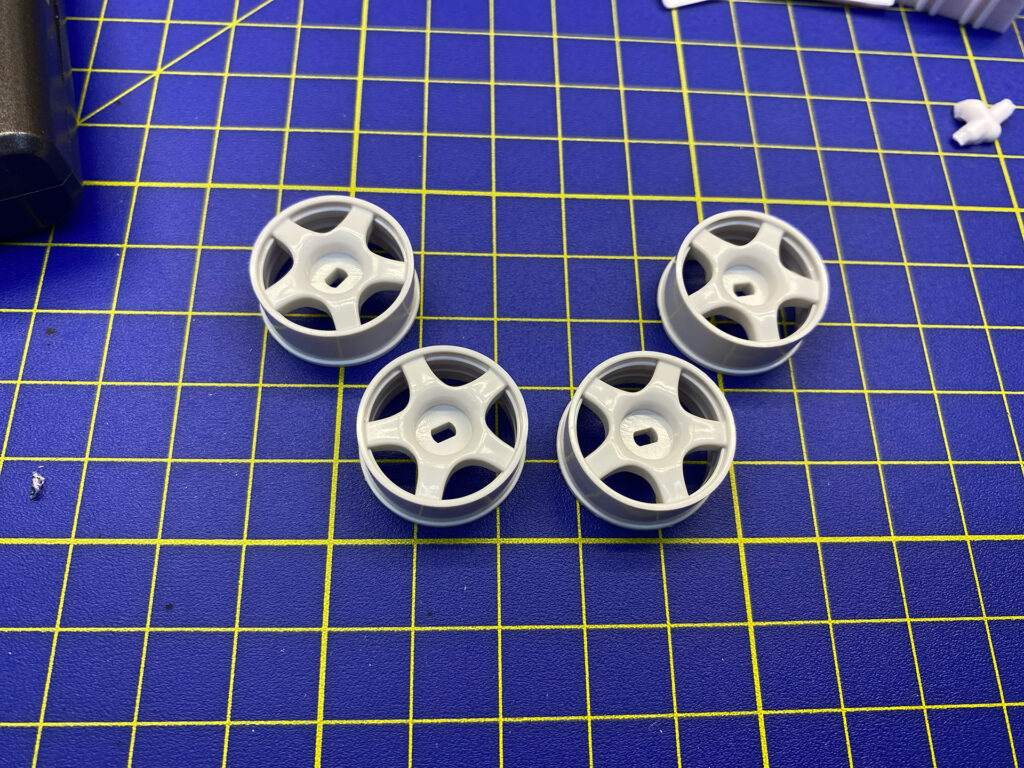

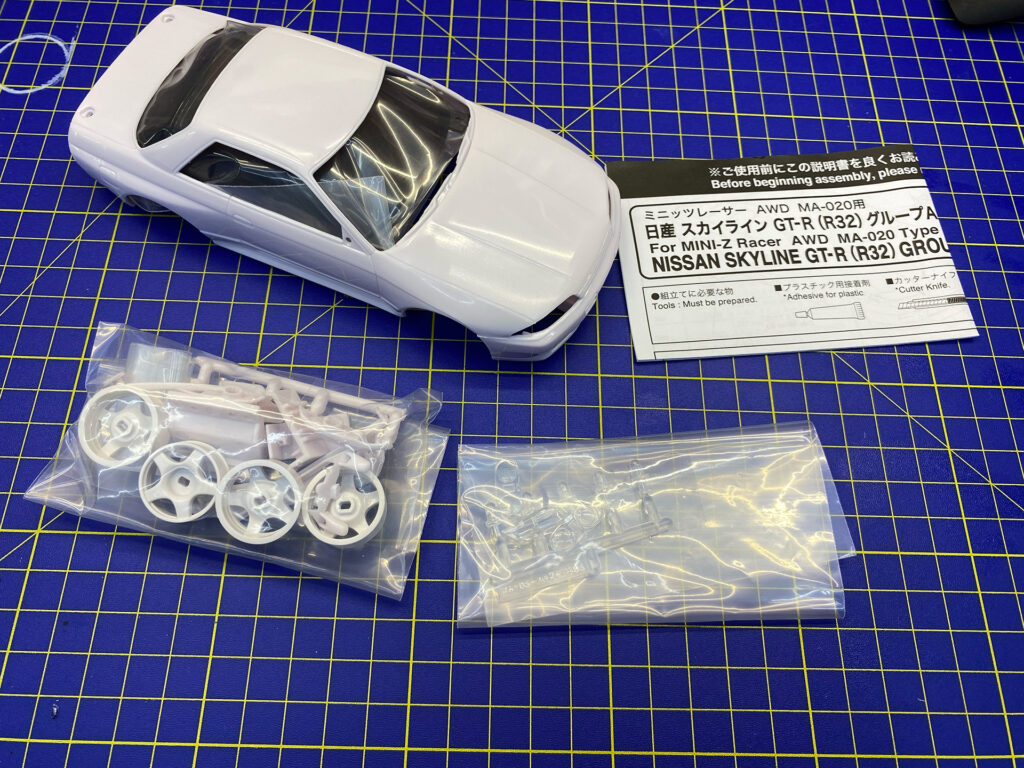

The bag contain the body, the windows shield in a plastic bag, the instruction manual that you can download with the link above, a bag with the body accessories and wheels and a bag with the transparent parts.

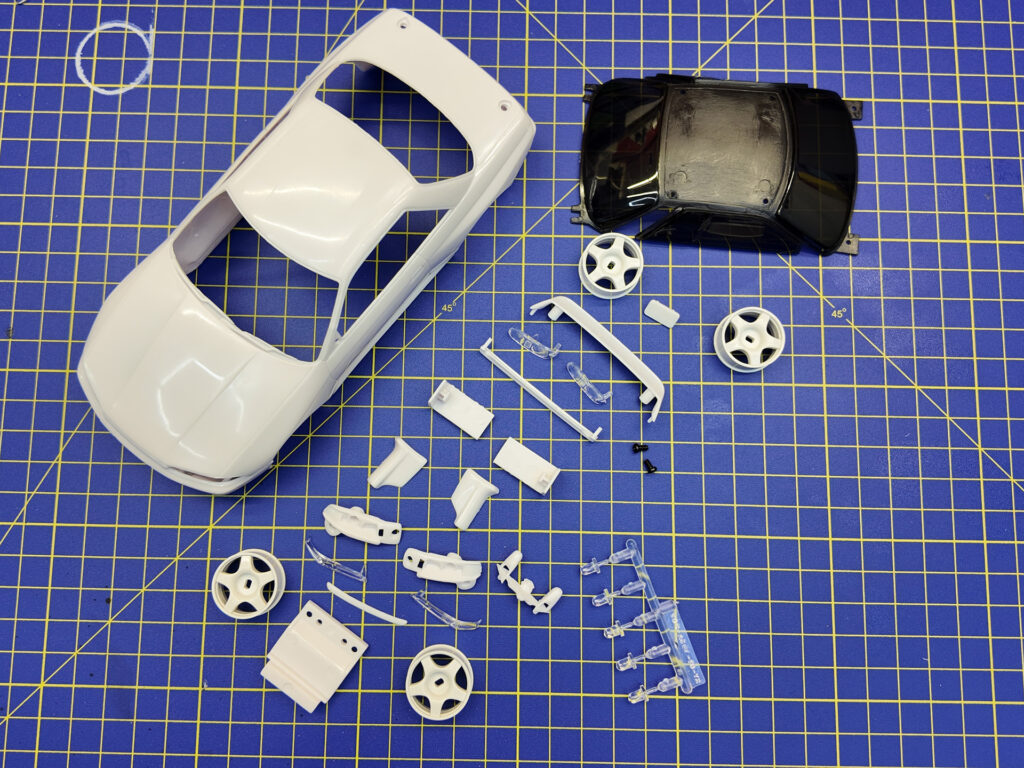

Here is the full content:

Body

The body looks nice, but it is not as nice as the bodies released the past years. The mold seems to be old and would need to be redesigned.

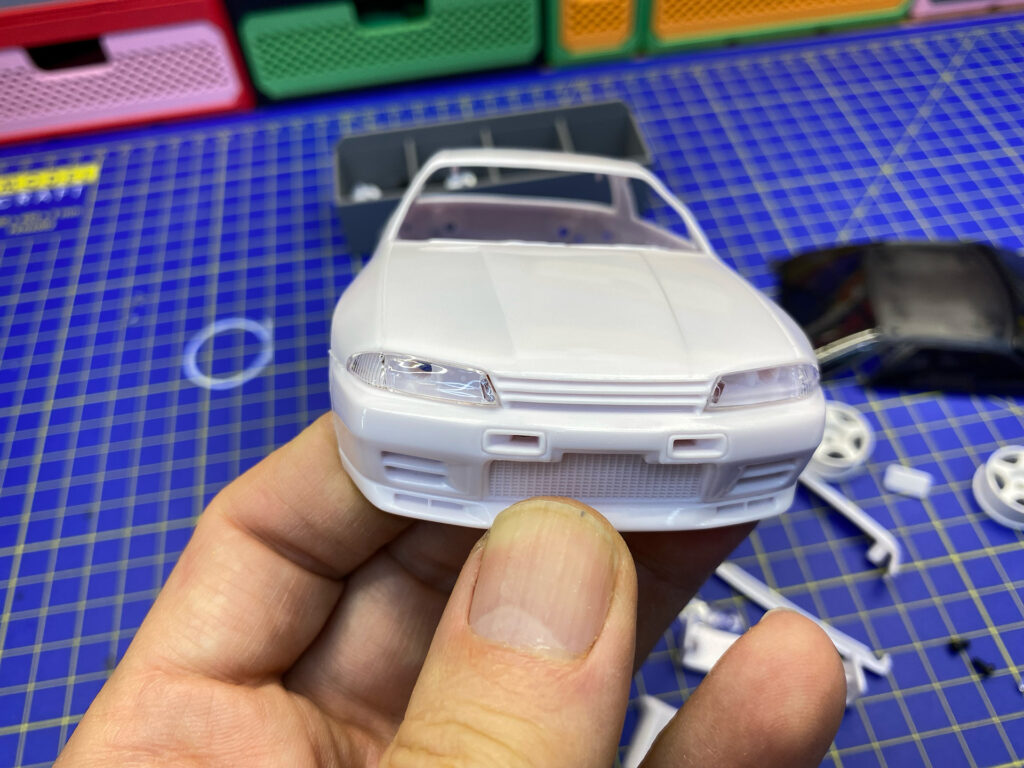

The front

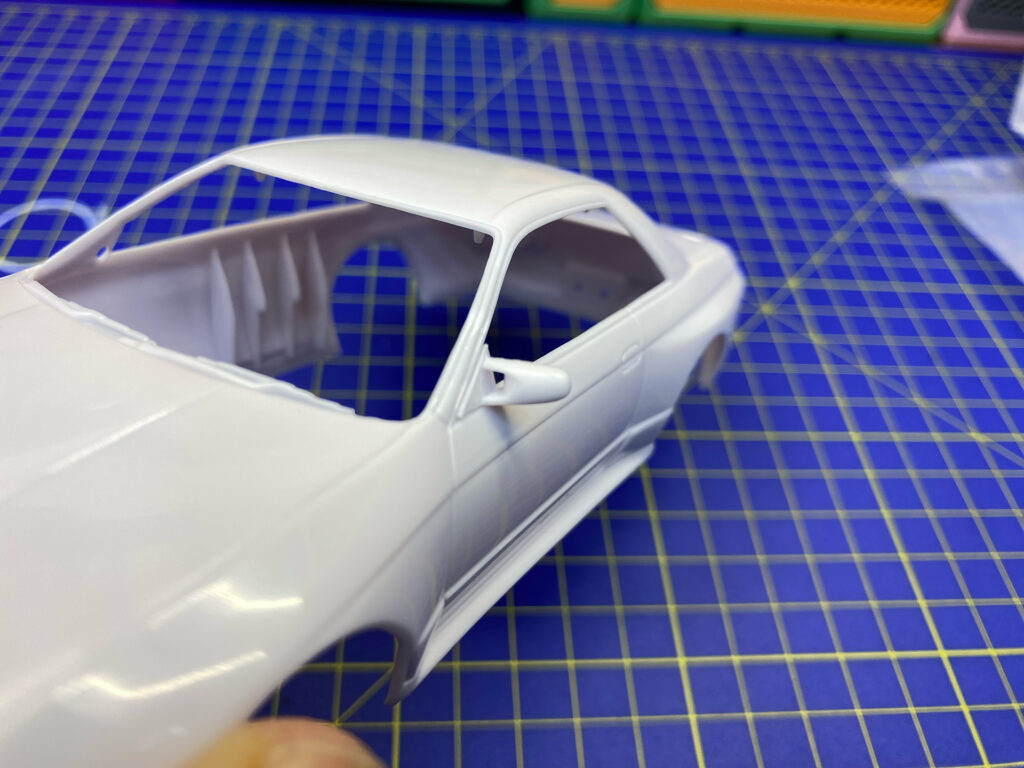

the wipers are molded with the body

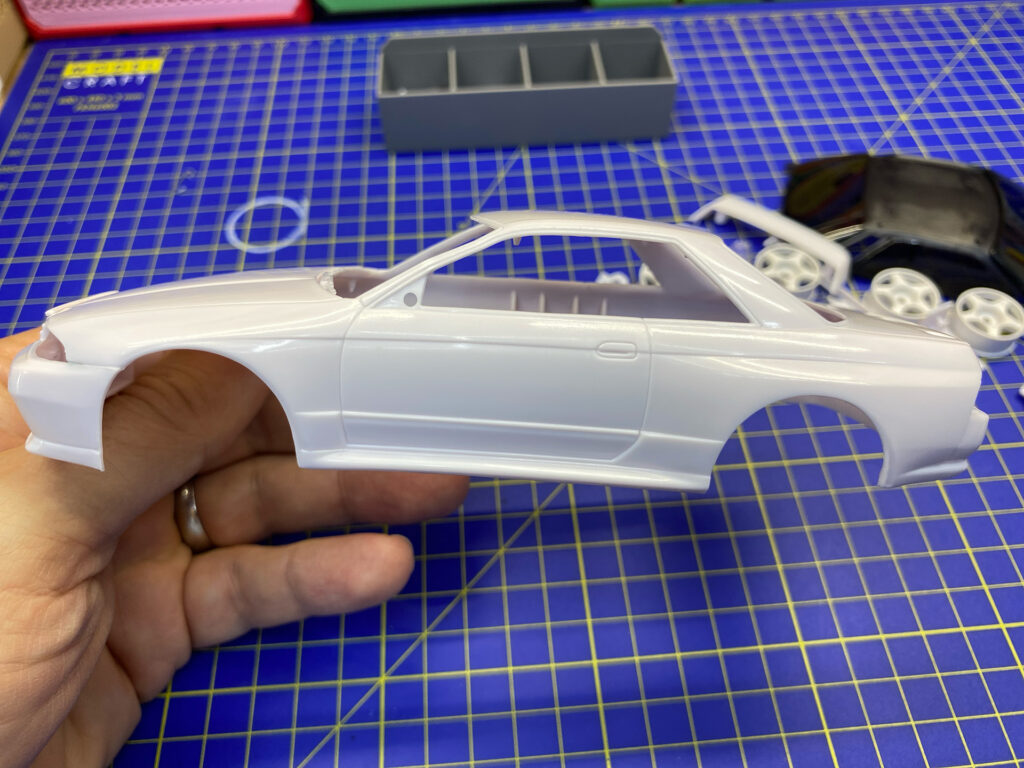

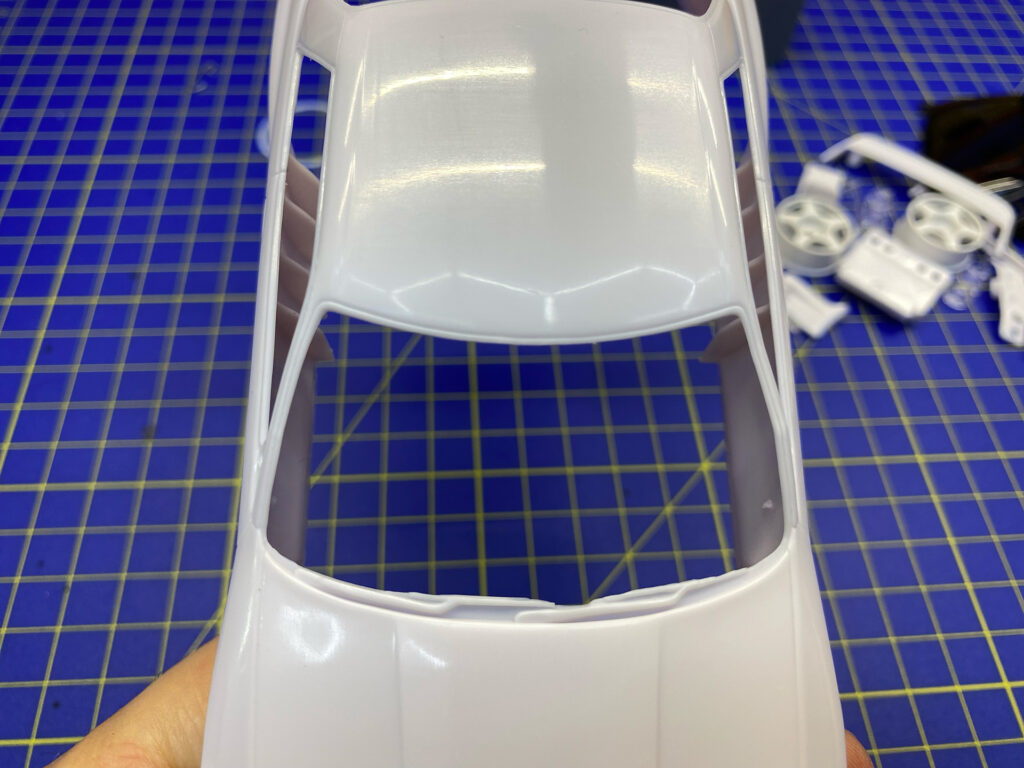

The body looks nice

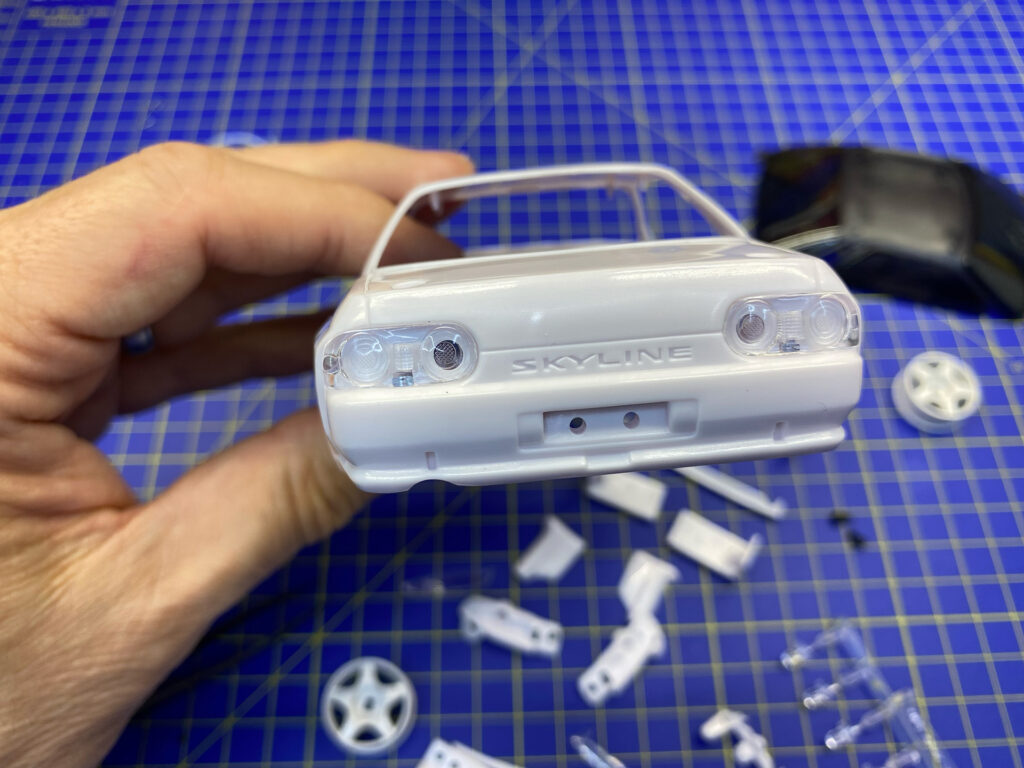

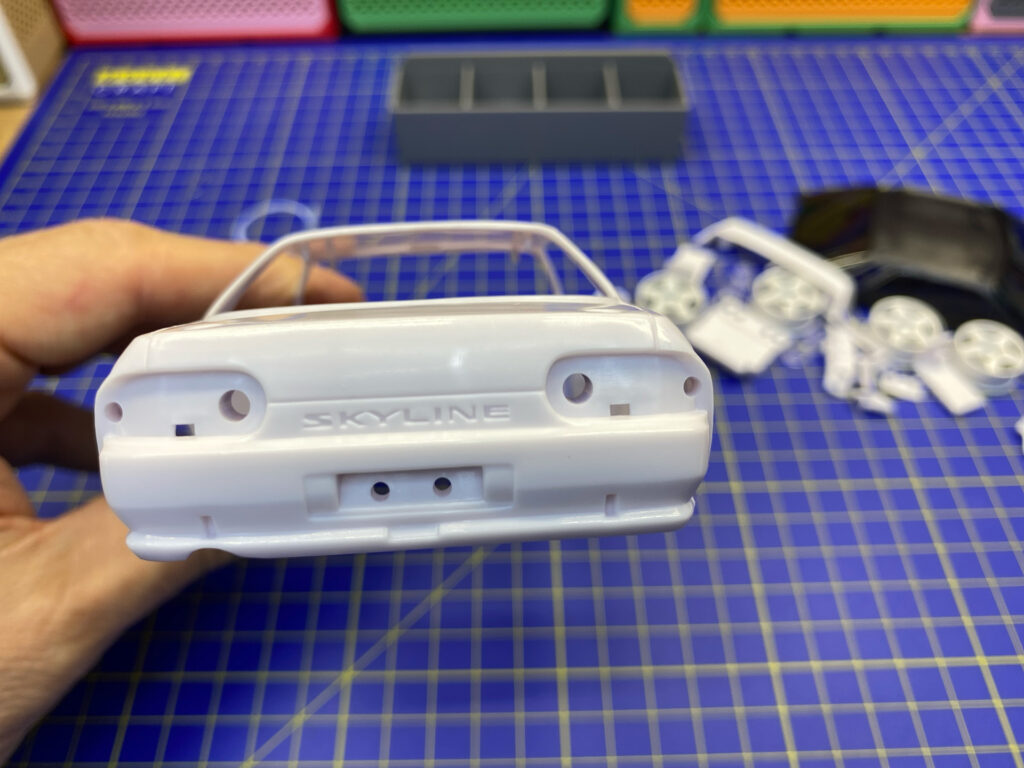

The rear wiew
You’ll notice their a mounting point for a rear exhaust

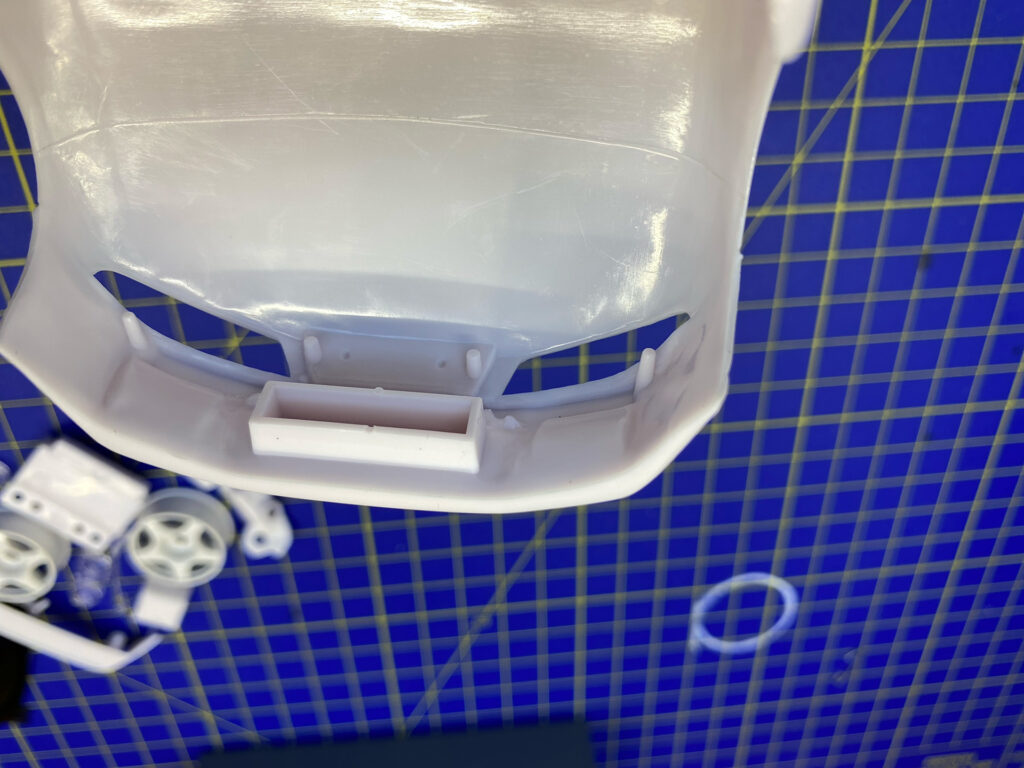

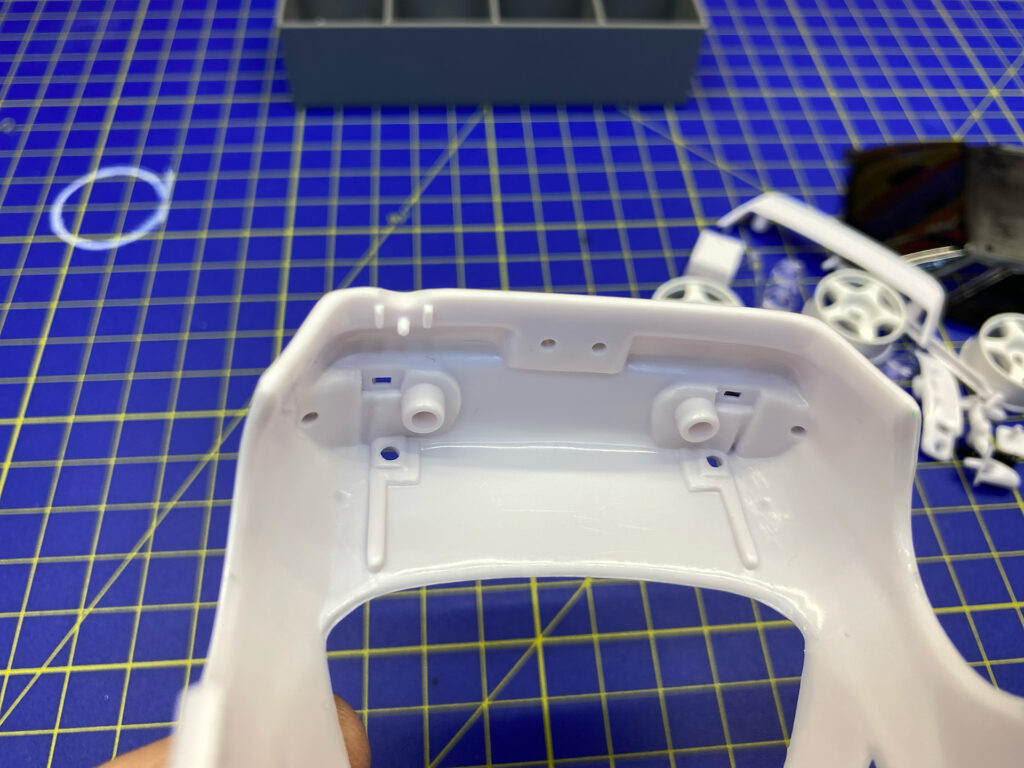

The front mounting feature

Lights

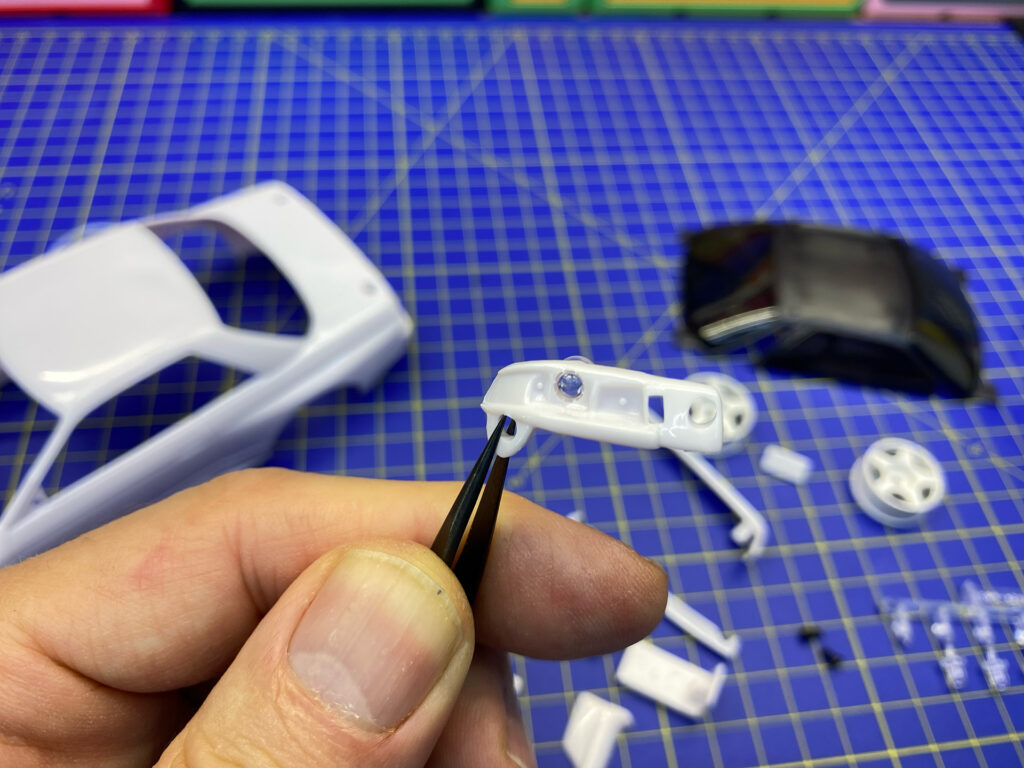

The head light base will need to be painted in chrome

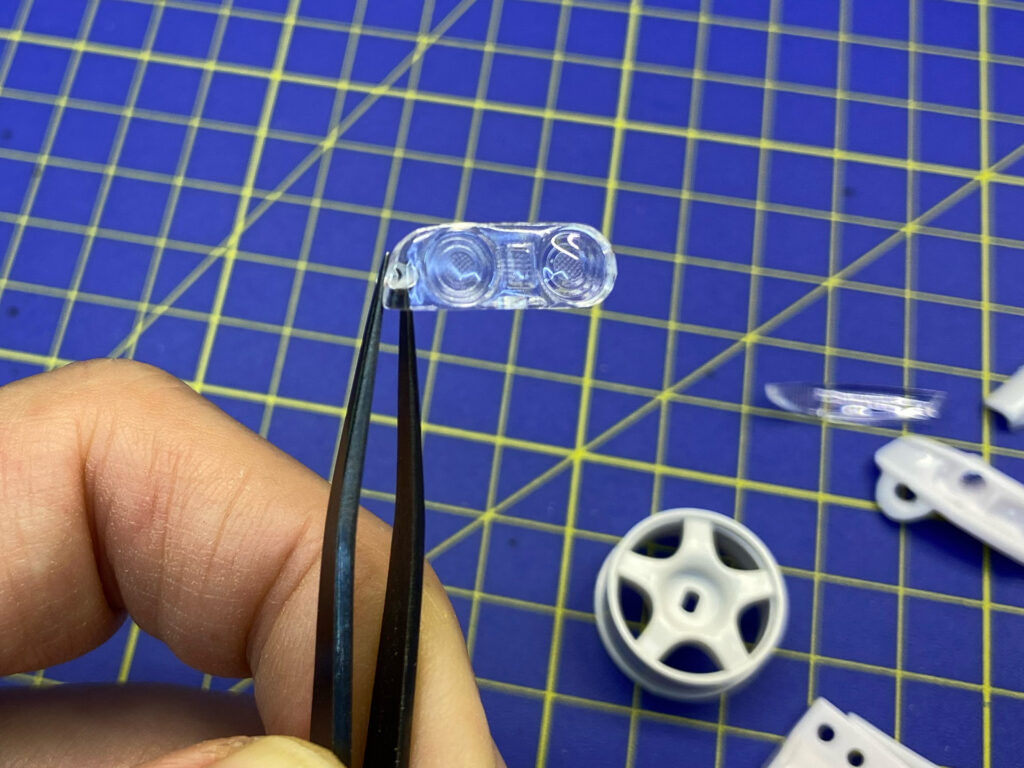

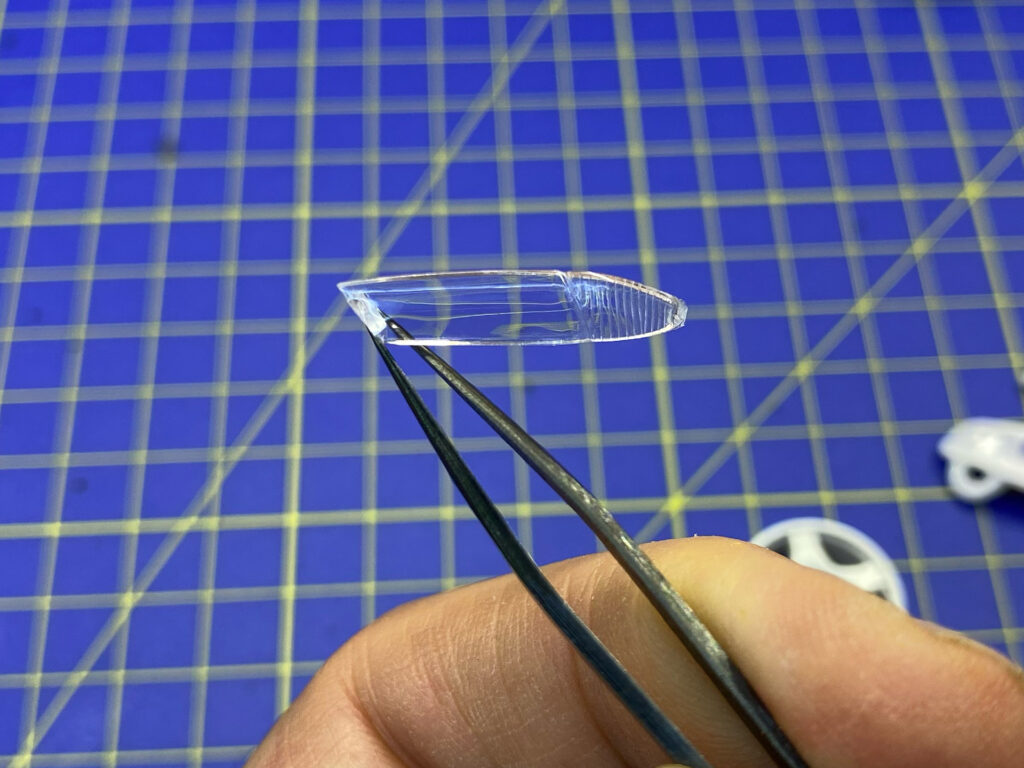

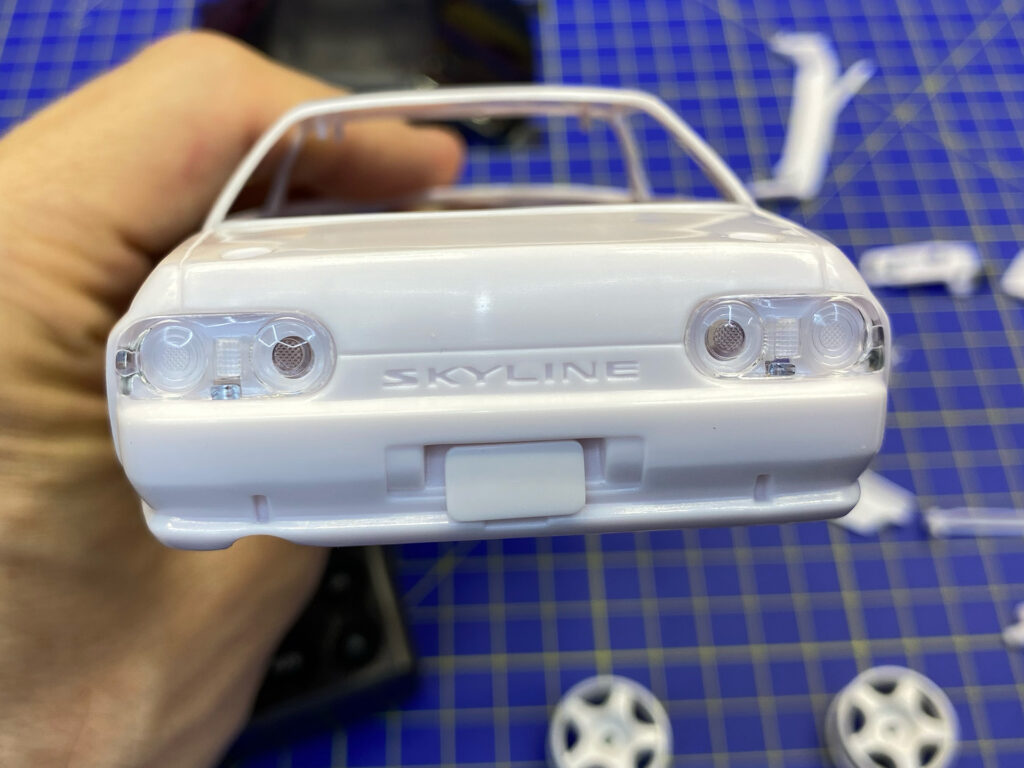

The Taillight Cover is a one-piece transparent part. It is required to be painted in transparent red for the two round stop and turning lights, in transparent grey for the back light; then those three elements will need to be masked as the rest will have to be painted with the body color. This can be a challenge and difficult.

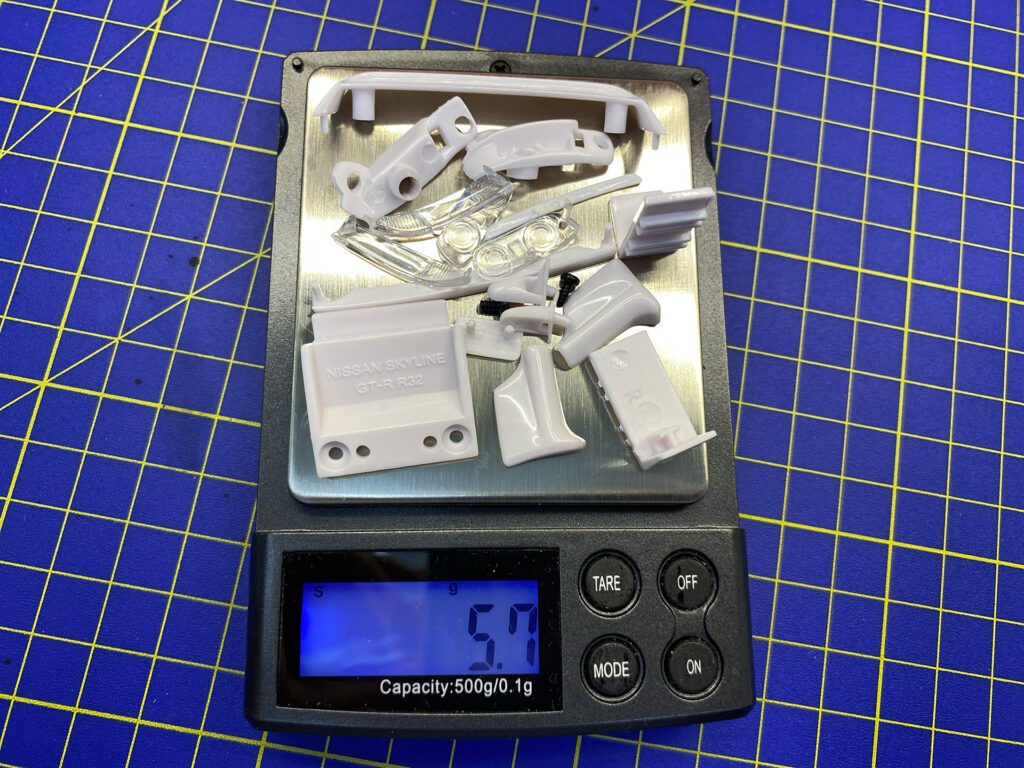

Body accessories

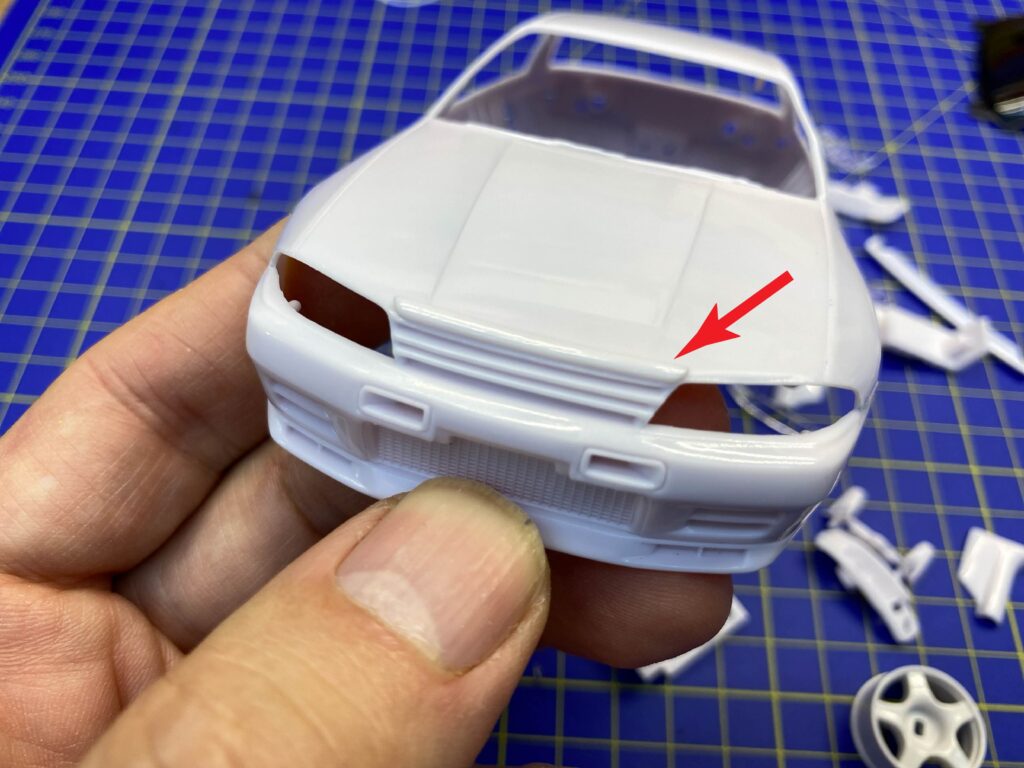

To adapt with the version of the car you want to build, there are several parts that will have to be glued on the body. The first is the front hood tip as shown below.

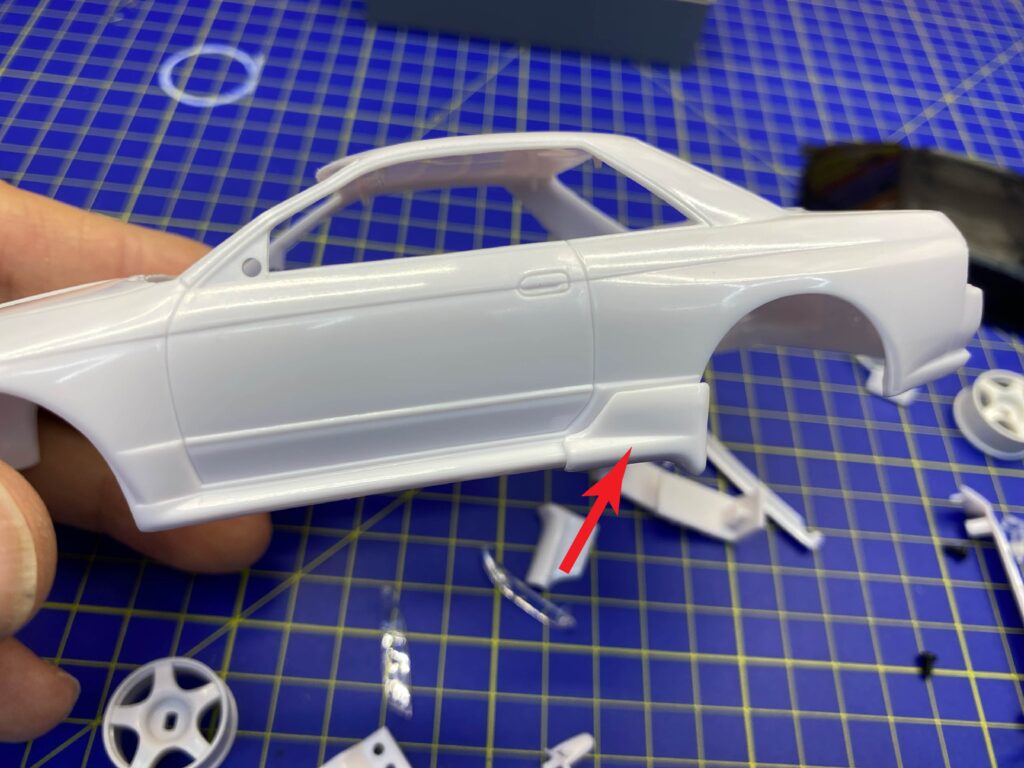

Then, the side body spoiler:

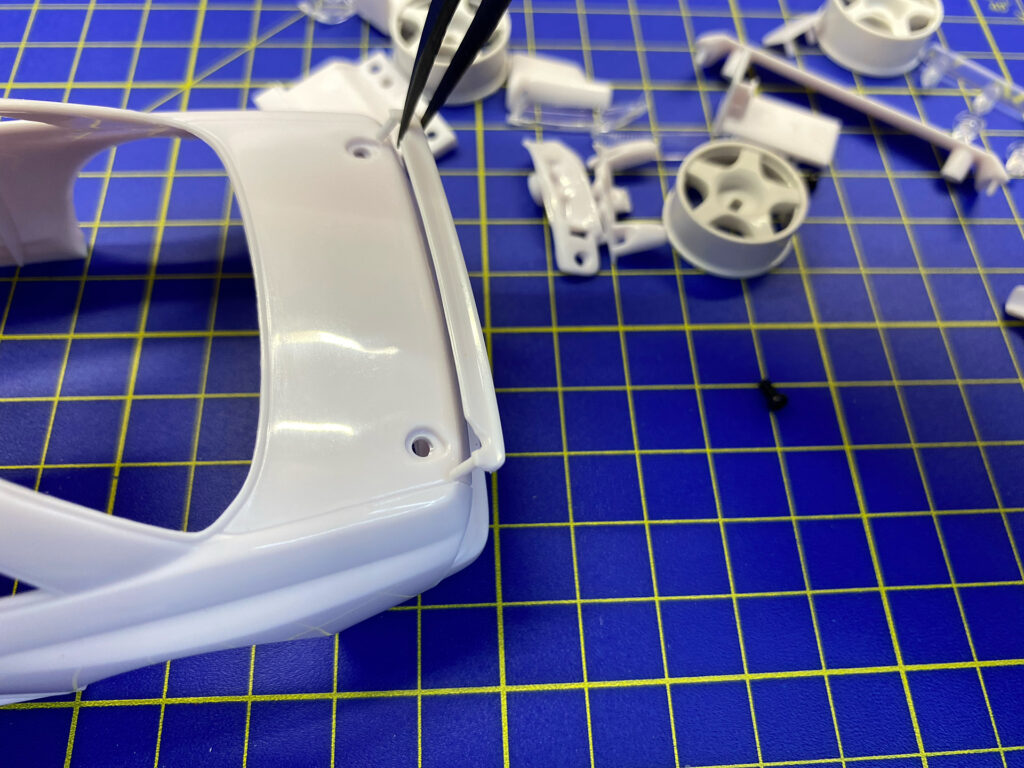

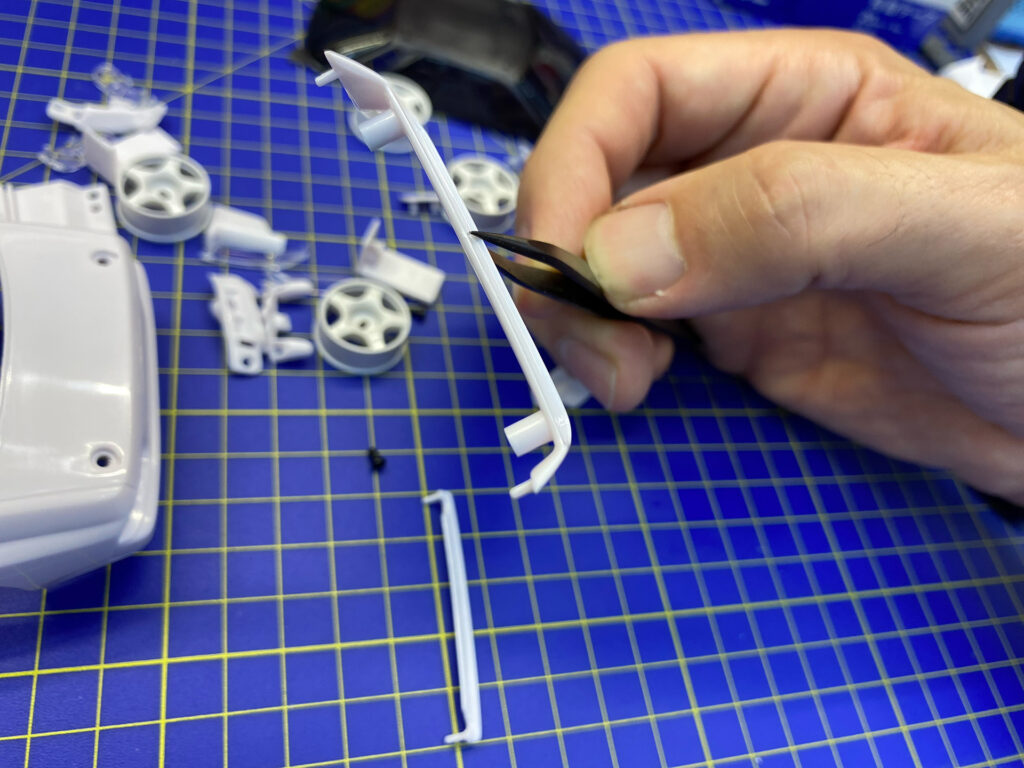

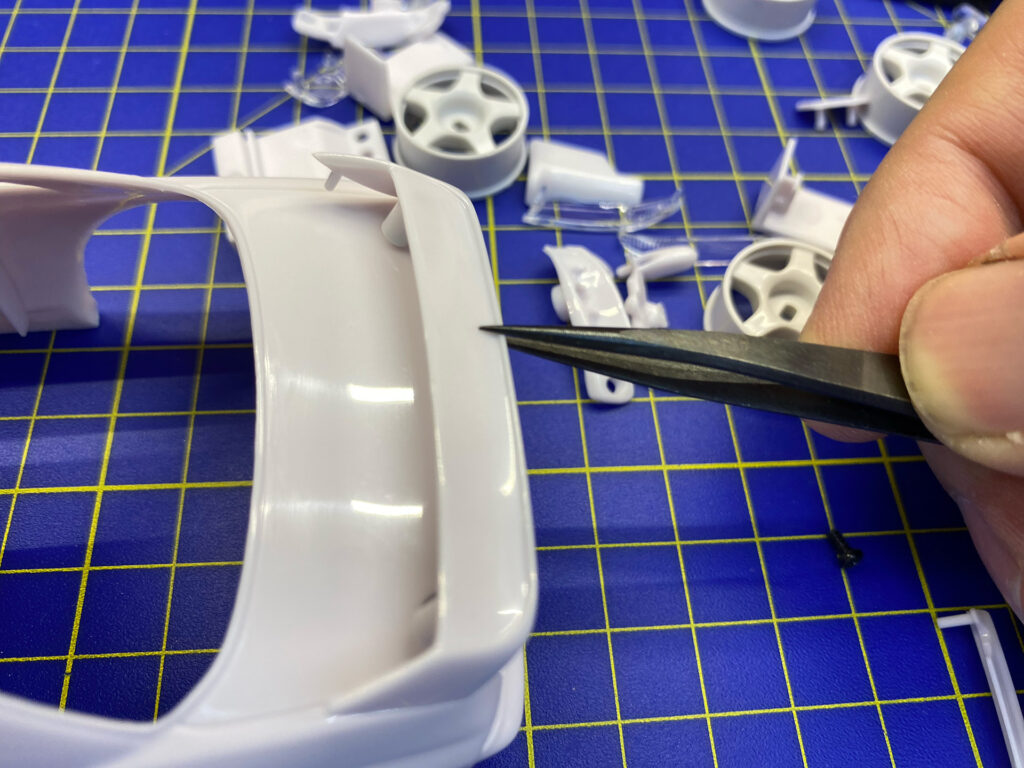

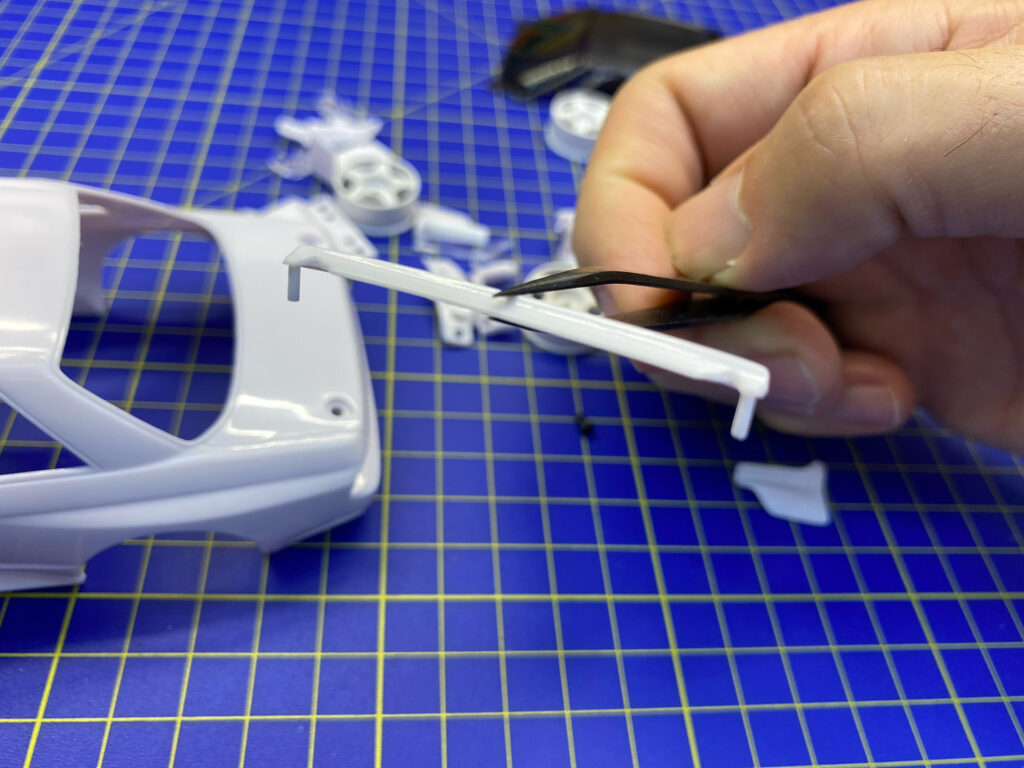

Then the rear spoiler lower and upper parts. On each of these parts, you’ll have to cut some pins. It’s possible that the original boy had the matching holes for these pins, but there are not present on the current body.
